Description
Thank you for your interest in flexercell products
Bio Excellence international Tech Co.,Ltd has been acting as sole agent for the sale of flexercell products for more than ten years,Bio Excellence can provide free technical guidance for flexercell tension, compression, fluid shear products, user site installation as well as training, until the user can use them without limiting number of training times.If you have any questions, please do not hesitate to contact us.

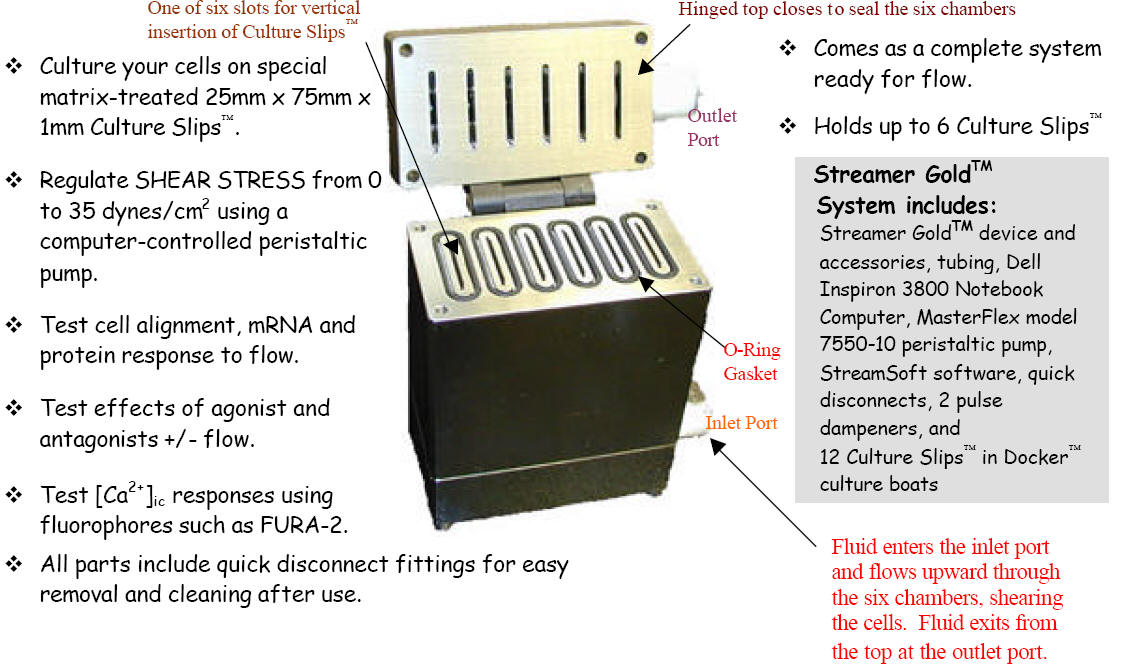

flexercell Streamer Device

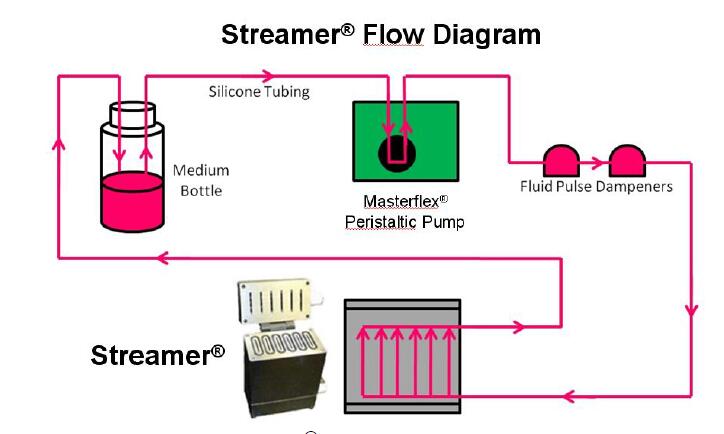

A system solution that allows users to apply fluid shear stress to cells in culture with laminar, pulsatile or oscillating flow.
-
Uses a computer-controlled peristaltic pump to regulate shear stress from 0-35 dynes/cm2
-
Works with the Osci-Flow® Flow Controller to regulate oscillating and pulsatile fluid flow
-
Culture cells on special matrix-coated Teflon rimmed 25 mm × 75 mm × 1.0 mm Culture Slips®
-
Analyze effects of fluid flow on cell alignment, mRNA and protein expression, and signaling pathways
-
Remove with quick disconnect fittings for easy cleaning after use
-
Streamer device is autoclavable
-
Run up to six slides in parallel at one time
WORK WITH Osci-Flow® Flow Controller
A flow control device that gives the user the ability to regulate the frequency of oscillation or pulsatile patterns as well as shear stress levels applied to cells through StreamSoft® and NI-DAQ software.
-
Provides software regulated control of oscillatory and pulsatile fluid flow
-
Works as a system solution with the Streamer® and flexflow shear stress devices
-
Minimizes flow response lag by eliminating inertial effects of decelerating and accelerating pumps and motors
-
Instantaneously reverses fluid flow
-
Adapts to other perfusion systems
-
Accommodates any MasterFlex L/S series, or comparable, tubing.
WORK WITH FlexFlow® ShearStress?Device
A parallel plate laminar shear stress device that allows the user to observe signaling responses to fluid flow and/or apply strain (up to 4%) to cells before, during, or after applying a shear stress.
-
Test cell alignment response to fluid flow
-
Culture your cells on matrix bonded surfaces using StageFlexer® Membranes or Culture Slips®.
-
Regulate shear stress from 0-35 dynes/cm2 using a computer-controlled peristaltic pump
-
Use with the Osci-Flow® Flow Controller to regulate the frequency of oscillation or pulsatile flow patterns
Uses a computer controlled peristaltic pump to regulate shear stress from 0-35 dynes/cm2 . Strain cells using a flexercell® Tension System before, during, or after applying shear stress. Culture cells on matrix bonded surfaces (StageFlexer® membranes or Culture Slips®). View cell responses to flow and/or strain in real-time with an upright microscope.
The FlexFlow is a parallel plate laminar flow device designed to apply fluid shear stress and/or cyclic strain to cells in culture while providing a means for
viewing cell activity under a microscope in real time. The FlexFlow fits on the stage of a standard upright microscope and holds both flexercell® Culture Slips® and StageFlexer® membranes.
Integrate with the FX-6000T system, which can stretch the cells while providing fluid shear stress, and detect the real-time response of blood vessels and nodular tissue cells to fluid flow.
Culture Slips® Microscope Slides
Works with the Streamer® and FlexFlow® systems. Each slip is matrix treated to promote cell attachment.
-
Culture Slips® are available in two sizes: 75 mm x 25 mm x 1.0 mm (for Streamer® or FlexFlow®), 76 mm x 25 mm x 1 mm (for FlexFlow® only)
-
Culture Slips® are rimmed with a 1.0 mm wide Teflon® border to help limit cell culture growth to the portion of the slip exposed to fluid flow
-
Covalently bound matrix surfaces: Untreated, Amino, Collagen (Type I or IV), Elastin, Pronectin® (RGD), and Laminin (YIGSR)
-
Available in a pack of 6 or case of 36 culture slips
|
